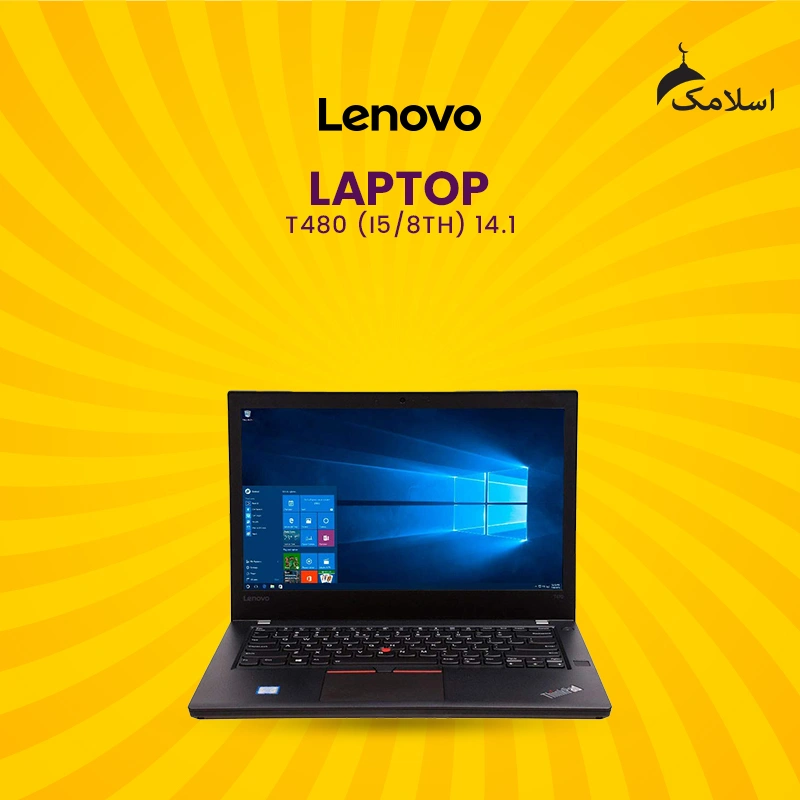

LENOVO T480 | Core i5 8th Generation | 8GB RAM-256GB SSD M2 | 14.1″ SCREEN

1. Processor:

• CPU: Intel Core i5-8250U (8th Generation)
• Base Clock Speed: 1.6 GHz
• Turbo Boost: Up to 3.4 GHz
• Cores/Threads: 4 Cores, 8 Threads (Quad-core processor with Hyper-Threading)
• Cache: 6MB Smart Cache
• Architecture: Kaby Lake R (14nm)
• TDP (Thermal Design Power): 15W

2. Display:

• Screen Size: 14 inches
• Resolution:
  • Full HD (1920×1080 pixels) with IPS technology
  • HD (1366×768 pixels) on certain lower-end models
• Panel Type: IPS (In-Plane Switching), which ensures better color accuracy and wide viewing angles
• Brightness: 250 nits for the Full HD model, typically (higher for some configurations)
• Touchscreen: Optional on certain configurations
• Aspect Ratio: 16:9
• Anti-glare Coating: Yes

3. Memory (RAM):

• Standard RAM: 8GB or 16GB DDR4 (2400 MHz)
• Upgradeable: Yes, up to 32GB (1 x 8GB or 16GB soldered + 1 x 16GB removable)
• Memory Slots: 1 Slot (for removable RAM)
• Dual-channel support: Yes, when two RAM modules are installed

4. Storage:

• Primary Storage: Solid-State Drive (SSD)
  • 256GB, 512GB, or 1TB PCIe NVMe SSD options
• Secondary Storage: Some configurations offer an additional 2.5-inch SATA SSD/HDD (for additional storage)
• Storage Expansion: The T480 supports additional SSD/HDD options via its internal drive bay.

5. Graphics:

• Integrated Graphics: Intel UHD Graphics 620 (for 8th Gen Intel Core processors)
  • Base Clock: 300 MHz
  • Max Dynamic Frequency: 1.1 GHz
  • Suited for light gaming, media consumption, and general office work, but not intended for heavy graphics tasks like gaming or video editing.

6. Battery:

• Battery Type: Lithium-ion
• Battery Capacity:
  • 3-cell (24Wh) or 6-cell (72Wh) battery options
• Battery Life:
  • Up to 14 hours with the 6-cell battery (depending on configuration and usage)
  • Battery life can vary depending on usage, screen brightness, and power settings.
• Rapid Charge: Yes, 80% charge in 1 hour with the 65W charger
• AC Adapter: 65W USB Type-C adapter (Power Delivery supported)

7. Operating System:

• Pre-installed OS: Windows 10 Pro or Windows 10 Home (varies by configuration)

8. Ports & Connectivity:

• USB Ports:
  • 2 x USB 3.1 Gen 1 (Type-A)
  • 1 x USB Type-C 3.1 Gen 2 (with Power Delivery and DisplayPort 1.2 support)
  • 1 x USB 3.1 Gen 1 (Type-C, PowerShare)
  • USB-C docking support available with a compatible dock.
• Networking:
  • 1 x RJ45 Ethernet port
  • Wi-Fi 802.11ac (Dual-band 2.4 GHz / 5 GHz)
  • Bluetooth 4.1 or 4.2 (depending on the configuration)
• Display:
  • 1 x HDMI 2.0 (for connecting external displays, supports 4K output at 30Hz)
  • 1 x Mini DisplayPort 1.2 (on some models)
• Audio:
  • 1 x Combo audio jack (headphone / microphone)
• Card Reader:
  • MicroSD card reader
• Security:
  • Fingerprint reader (optional)
  • Smart card reader (optional)
  • TPM 2.0 (Trusted Platform Module)

9. Keyboard and Input:

• Keyboard:
  • Full-sized spill-resistant keyboard
  • Backlit keyboard (optional)
  • 6-row, UltraNav system (with TrackPad and TrackPoint for additional navigation)
• Trackpad: Precision touchpad with multi-gesture support
• Fingerprint Reader: Optional, integrated into the power button
• Optional IR Camera: For Windows Hello facial recognition

10. Design & Build:

• Dimensions: 13.23 x 9.03 x 0.78 inches (336.6 x 229.8 x 19.95 mm)
• Weight: 3.6 lbs (1.63 kg)
• Material: Magnesium alloy chassis with carbon fiber reinforced plastic, making it both durable and lightweight
• Color: Black (matte finish)

11. Audio:

• Speakers: Stereo speakers with Dolby Audio Premium for improved sound quality
• Microphones: Dual-array microphone for noise cancellation
• Camera:
  • 720p HD webcam (with optional IR camera for Windows Hello)
